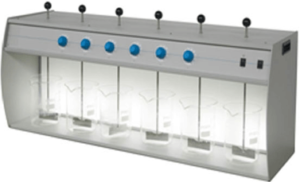

This equipment has been designed to optimize the dosage of coalescent in sewage disposal, that is to carry out the well known “jar test”. Multiple stirrers with reproducible stirring speeds allow to adopt standard conditions for the tests, that are the basic requirement for reproducible results. A special switch available on the front panel enables to backlight the sample being examined for easier readings. The rotation speed can be programmed from 10 to 300 r.p.m.
TRAINING PROGRAM:
• Determination of the optimal dosage of coagulant
• Determination of the optimal pH
• Effect of mixing
• Coagulation in presence of active carbons
TECHNICAL CHARACTERISTICS:
• Framework of AISI 304 stainless steel, painted with epoxy paint
• Number of stirring positions: 6
• Stirring rods of stainless steel, adjustable in height by a self blocking chuck
• Rear panel: backlit and dis-connectable
• DC gear motor
• Selector speed at each stirring position
• Electronic speed control: from 10 to 300 r.p.m.
• Power supply: 230 Vca 50 Hz single-phase – 50 VA (Other voltage and frequency on request)
